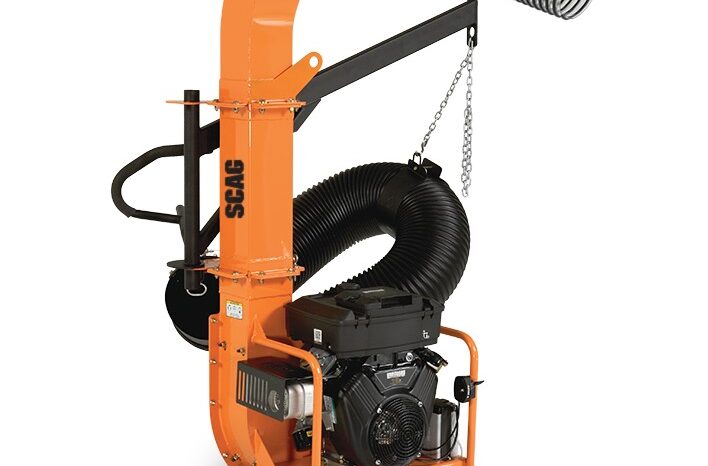

SCAG Skid-Mount

(267) 580-5824

Actions

MAKE A STAND

OPTIONAL SWING-AWAY HITCH-MOUNT ACCESSORY
Skid-Mount STANDARD 4" SKID RISERS
10" Steel Intake Nozzle TAKE IT ALL IN
Ambidextrous Nozzle Handle EASY HANDLING FROM EITHER SIDE
Locking Boom Arm and Intake Nozzle SAFE AND CONVENIENT TRANSPORT
Smart Construction and Convenient Serviceability EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE
4-Blade Impeller FABRICATED AND BALANCED 20-INCH 4-BLADE IMPELLER

Engine18 hp Vanguard® gasoline, V-twin engine with electric start.
Fuel Capacity / Tank1.75 gallons – engine-mounted metal tank
CFM Output3,075
Frame ConstructionAll-steel, welded
Impeller Construction4-blade, 3/8"-thick blades, all-steel, welded
Impeller MountingTapered locking hub
Impeller Diameter / Width20" / 5.25"
Blower Housing ConstructionRemovable back panel for easy impeller and wear plate access
Blower Housing Width6"
Blower Housing Wear PlatesStandard: 1/4"-steel, replaceable
Hose Specifications120" length, 10"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Unit Mounting4" steel skid risers
Discharge TubeClear thermoplastic, 7" diameter
Throttle ControlCommercial-grade, all-steel mechanicals, plastic debris cover
Height74.25" (without skid or hitch mount attached)
Weight437 lb
Warranty2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
