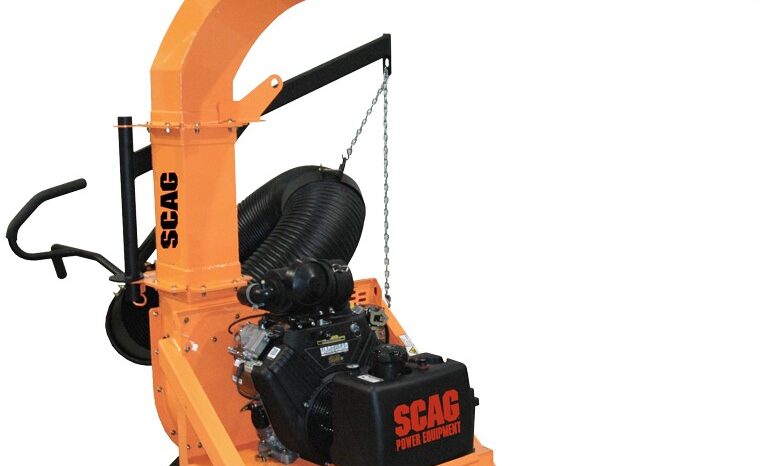

SCAG Industrial Skid-Mount

(267) 580-5824

Actions

BUILT TO WORK

12" Steel Intake Nozzle TAKE IT ALL IN
4-Blade Impeller FABRICATED AND BALANCED 20-INCH 4-BLADE IMPELLER
Ambidextrous Nozzle Handle EASY HANDLING FROM EITHER SIDE
Large-Capacity Fuel Tank With Built-In Gauge
Locking Boom Arm and Intake Nozzle SAFE AND CONVENIENT TRANSPORT
Skid-Mount STANDARD 4" SKID RISERS
Smart Construction and Convenient Serviceability EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE

Engine29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start
Fuel Capacity / Tank5.5 gallons – plastic tank with built-in fuel gauge
CFM Output4,680
Frame ConstructionAll-steel, welded
Impeller Construction4-blade, 3/8"-thick blades, all-steel, welded
Impeller MountingTapered locking hub
Impeller Diameter / Width20" / 6.5"
Blower Housing ConstructionRemovable back panel for easy impeller and wear plate access
Blower Housing Width7.5"
Blower Housing Wear PlatesStandard: 1/4"-steel, replaceable
Hose Specifications120" length, 12"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Unit Mounting4" steel skid risers
Discharge TubeClear thermoplastic, 8" diameter
Throttle ControlCommercial-grade, all-steel mechanicals, plastic debris cover
Height75" (without skid mount attached)
Weight675 lb
Warranty2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
